ACMD-7610

UMTS / Co-band GSM Rx Band 8 Duplexer

ACMD-7610 Features

* x Miniature Size

* 2.0 x 2.5 mm Max size

* 0.95 mm Max Height

* Standard 2 x 2.5 mm PCB footprint x High Isolation enables elimination of interstage filter x Co-banding allows elimination of the GSM Rx filter x High Power Rating

* 31 dBm Abs Max Tx Power x Environment

ACMD-7610 General Description

The Avago ACMD-7610 is a highly miniaturized duplexer designed for use in UMTS Band 8 (880

* 915 MHz UL, 925

* 960 MHz DL) handsets and mobile data terminals. Low Insertion Loss in the Tx channel minimizes current drain from the power amplifier, while low Rx channel Insertion Loss im.

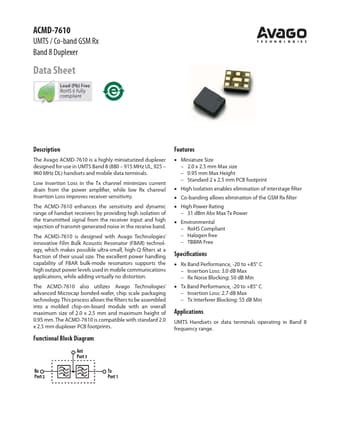

ACMD-7610 Datasheet (481.90 KB)

Preview of ACMD-7610 PDF

Datasheet Details

Part number:

ACMD-7610

Manufacturer:

Avago

File Size:

481.90 KB

Description:

Umts / co-band gsm rx band 8 duplexer.
