ACMD-6007

LTE Band 7 Duplexer

ACMD-6007 Features

* x Miniature Size

* 2.0 x 2.5 mm Max size

* 0.95 mm Max Height

* Standard 2 x 2.5 mm PCB footprint x High Isolation x High Power Rating

* 33 dBm Abs Max Tx Power x Environmental

* RoHS Compliant

* Halogen free

* TBBPA Free Specifications x Rx B

ACMD-6007 General Description

The Avago ACMD-6007 is a highly miniaturized duplexer designed for use in LTE Band 7 (2500

* 2570 MHz UL, 2620

* 2690 MHz DL) handsets and mobile data terminals. Low Insertion Loss in the Tx channel minimizes current drain from the power amplifier, while low Rx channel Insertion Loss.

ACMD-6007 Datasheet (504.10 KB)

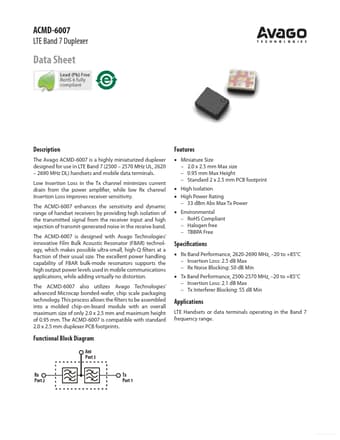

Preview of ACMD-6007 PDF

Datasheet Details

Part number:

ACMD-6007

Manufacturer:

Avago

File Size:

504.10 KB

Description:

Lte band 7 duplexer.
