ACMD-6025

Duplexer

ACMD-6025 Features

* High Isolation

* Miniature Size

* 2.0 x 2.5 mm Max Size

* 0.95 mm Max Height

* Standard 2 x 2.5 mm PCB footprint

* High Power Rating

* 33 dBm Abs Max Tx Power

* Environmental

* RoHS 6 Compliant

* Halogen free

ACMD-6025 General Description

The Avago ACMD-6025 is a highly miniaturized duplexer designed for use in LTE Band 25 (1850

* 1915 MHz UL, 1930

* 1995 MHz DL) handsets and mobile data terminals. Low Insertion Loss in the Tx channel minimizes current drain from the power amplifier, while low Rx channel Insertion Los.

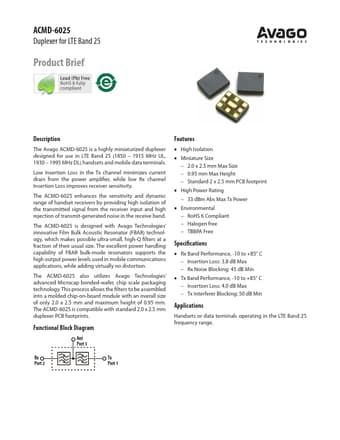

ACMD-6025 Datasheet (130.34 KB)

Preview of ACMD-6025 PDF

Datasheet Details

Part number:

ACMD-6025

Manufacturer:

AVAGO

File Size:

130.34 KB

Description:

Duplexer.
