ACMD-6125

Band 25 Duplexer

ACMD-6125 Features

* Miniature Size - 1.6 x 2.0 mm size - 0.9 mm height - Standard 1.6 x 2.0 mm PCB footprint

* High Isolation

* High Power Rating - +33 dBm Abs Max. Tx Power

* Environmental - RoHS Compliant - Halogen free - TBBPA Free Specifications,

* 10 °C to +85 °C

ACMD-6125 General Description

The Avago ACMD-6125 is a highly miniaturized duplexer designed for use in Band 25 (1850.25

* 1914.75 MHz UL, 1930.25

* 1994.75 MHz DL) handsets and mobile data terminals. Low Insertion Loss in the Tx channel minimizes current drain from the power amplifier, while low Rx channel Inser.

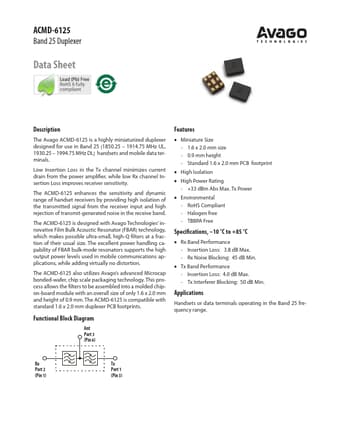

ACMD-6125 Datasheet (528.41 KB)

Preview of ACMD-6125 PDF

Datasheet Details

Part number:

ACMD-6125

Manufacturer:

AVAGO

File Size:

528.41 KB

Description:

Band 25 duplexer.
