ACMD-6103

Band 3 Duplexer

ACMD-6103 Features

* Miniature Size - 1.6 × 2.0 mm size - 0.9 mm height - Standard 1.6 × 2.0 mm PCB footprint

* High Isolation

* High Power Rating - +33 dBm Abs. Max. Tx Power - +31 dBm Abs. Max. Rx Power

* Environmental - RoHS Compliant - Halogen free - TBBPA Free Specificat

ACMD-6103 General Description

The Avago Technologies ACMD-6103 is a highly miniaturized duplexer designed for use in LTE Band 3 (1710

* 1785 MHz UL, 1805

* 1880 MHz DL) handsets and mobile data terminals. Low Insertion Loss in the Tx channel minimizes current drain from the power amplifier, while low Rx channel I.

ACMD-6103 Datasheet (502.39 KB)

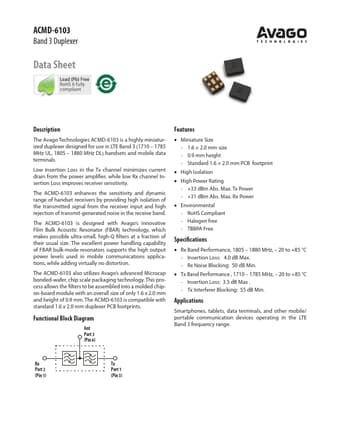

Preview of ACMD-6103 PDF

Datasheet Details

Part number:

ACMD-6103

Manufacturer:

AVAGO

File Size:

502.39 KB

Description:

Band 3 duplexer.
