ACMD-6207 - LTE Band 7 Duplexer

AVAGO

📥 Download Datasheet

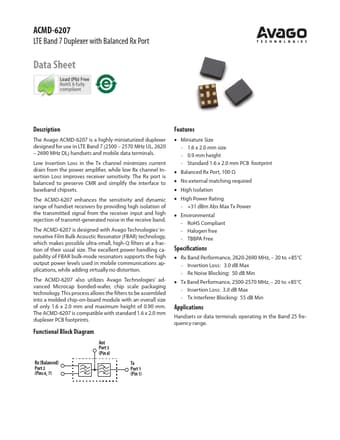

ACMD-6207 Datasheet Preview — Preview of ACMD-6207 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: ACMD-6207
Manufacturer: AVAGO
File Size: 486.88 KB
Datasheet: ACMD-6207-AVAGO.pdf
Description: LTE Band 7 Duplexer

ACMD-6207 Product details

Description

The Avago ACMD-6207 is a highly miniaturized duplexer designed for use in LTE Band 7 (2500. 2570 MHz UL, 2620. 2690 MHz DL) handsets and mobile data terminals..

Features

Miniature Size - 1.6 x 2.0 mm size - 0.9 mm height - Standard 1.6 x 2.0 mm PCB footprint.
Balanced Rx Port, 100 Ω.
No external matching required.
High Isolation.
High Power Rating - +31 dBm Abs Max Tx Power.
Environmental - RoHS Compliant - Halogen free -.
