ACMD-7609

UMTS Band 4 / CDMA AWS-1 Duplexer

ACMD-7609 Features

* Miniature Size

* 2.0 x 2.5 mm Max size

* 0.95 mm Max height

* Standard 2 x 2.5 mm PCB footprint

* High Isolation enables elimination of interstage filter

* High Power Rating

* 31 dBm Abs Max Tx Power

* Environmental

* RoHS 6 Co

ACMD-7609 General Description

The Avago ACMD-7609 is a highly miniaturized duplexer designed for use in UMTS Band 4 and CDMA AWS

*1 (1710

* 1755 MHz UL, 2110

* 2155 MHz DL) handsets and mobile data terminals. Low Insertion Loss in the Tx channel minimizes current drain from the power amplifier, while low Rx.

ACMD-7609 Datasheet (621.99 KB)

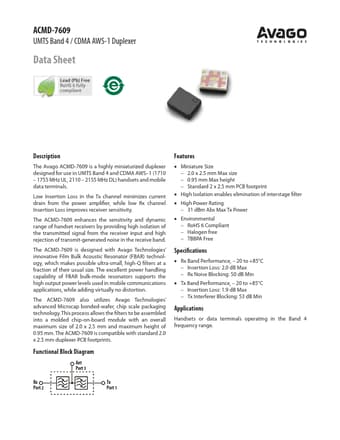

Preview of ACMD-7609 PDF

Datasheet Details

Part number:

ACMD-7609

Manufacturer:

Avago

File Size:

621.99 KB

Description:

Umts band 4 / cdma aws-1 duplexer.
