ACMD-7606

UMTS Band 8 Duplexer

ACMD-7606 Features

* x Miniature Size

* 2.0 x 2.5 mm Max size

* 0.95 mm Max Height

* Standard 2 x 2.5 mm PCB footprint x High Power Rating

* 31 dBm Abs Max Tx Power x Environmental

* RoHS Compliant

* Halogen free

* TBBPA Free Specifications x Rx Band Performance,

ACMD-7606 General Description

The Avago ACMD-7606 is a highly miniaturized duplexer designed for use in UMTS Band 8 (880

* 915 MHz UL, 925

* 960 MHz DL) handsets and mobile data terminals. Low Insertion Loss in the Tx channel minimizes current drain from the power amplifier, while low Rx channel Insertion Loss imp.

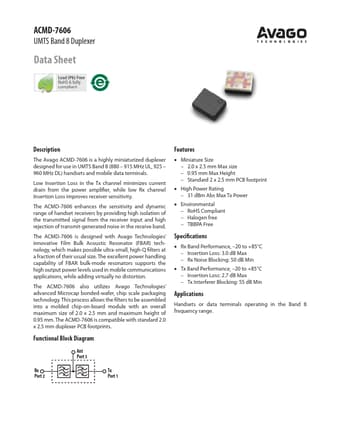

ACMD-7606 Datasheet (454.37 KB)

Preview of ACMD-7606 PDF

Datasheet Details

Part number:

ACMD-7606

Manufacturer:

AVAGO

File Size:

454.37 KB

Description:

Umts band 8 duplexer.
