ACMD-7614

UMTS Band 1 Duplexer

ACMD-7614 Features

* x Miniature Size

* 2.0 x 2.5 mm Max size

* 0.95 mm Max Height

* Standard 2 x 2.5 mm PCB footprint x High Isolation enables elimination of interstage filter x High Power Rating

* 31 dBm Abs Max Tx Power x Environmental

* RoHS Compliant

* Halogen free

ACMD-7614 General Description

The Avago ACMD-7614 is a highly miniaturized duplexer designed for use in UMTS Band 1 (1920

* 1980 MHz UL, 2110

* 2170 MHz DL) handsets and mobile data terminals. Low Insertion Loss in the Tx channel minimizes current drain from the power amplifier, while low Rx channel Insertion Los.

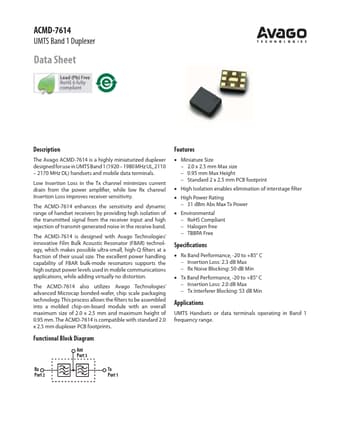

ACMD-7614 Datasheet (455.42 KB)

Preview of ACMD-7614 PDF

Datasheet Details

Part number:

ACMD-7614

Manufacturer:

Avago

File Size:

455.42 KB

Description:

Umts band 1 duplexer.
