ACMD-7402 - Miniature PCS Band Duplexer

AVAGO

📥 Download Datasheet

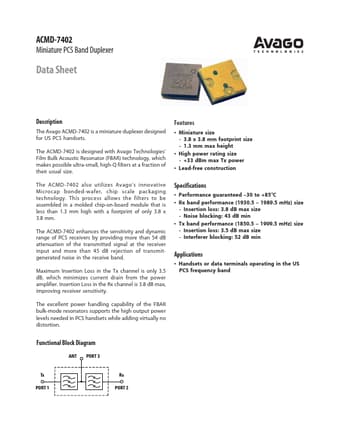

ACMD-7402 Datasheet Preview — Preview of ACMD-7402 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: ACMD-7402
Manufacturer: AVAGO
File Size: 237.79 KB
Datasheet: ACMD-7402-AVAGO.pdf
Description: Miniature PCS Band Duplexer

ACMD-7402 Product details

Description

The Avago ACMD-7402 is a miniature duplexer designed for US PCS handsets..

Features

Miniature size - 3.8 x 3.8 mm footprint size - 1.3 mm max height.
High power rating size - +33 dBm max Tx power.
Lead-free construction The ACMD-7402 also utilizes Avago’s innovative Microcap bonded-wafer, chip scale packaging technology. This process allows the filters to be assembled in a molded chip-on-board module that is less than 1.3 mm high with a footprint of only 3.8 x 3.8 mm. The ACMD-7402 enhances the sensitivity and dynamic range of PCS receivers by provi.
