ACMD-7612 Datasheet, Duplexer, AVAGO

ACMD-7612 Features

  • Duplexer
  •   Miniature size - 2.5 x 3.0 mm max footprint - 1.2 mm max height
  •   High power rating - +33 dBm Abs Max Tx Power
  •   Lead-free construction Specifications

PDF File Details

Part number:

ACMD-7612

Manufacturer:

AVAGO

File Size:

731.06kb

Download:

📄 Datasheet

Description:

Miniature umts band i duplexer. The Avago ACMD-7612 is a miniature duplexer designed for use in UMTS Band I handsets. Maximum Insertion Loss in the Tx channel is onl

Datasheet Preview: ACMD-7612 📥 Download PDF (731.06kb)

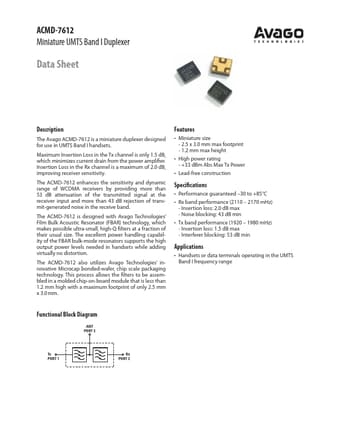

Page 2 of ACMD-7612 Page 3 of ACMD-7612

ACMD-7612 Application

  • Applications
  •   Handsets or data terminals operating in the UMTS Band I frequency range Functional Block Diagram ANT PORT 3 Tx PORT 1 Rx
