AMS124 Datasheet - Advanced Monolithic Systems

MICROPOWER SHUNT VOLTAGE REFERENCE

AMS124 Features

* Low Temperature Coefficient

* Low Output Noise

* Operating Current 50µ A to 4mA

* Low Dynamic Impedance

* Tight Output Voltage Tolerance

* Available in the sub-miniature SOT-23 Package AMS124 MICROPOWER SHUNT VOLTAGE REFERENCE APPLICATIONS

AMS124 General Description

The AMS124 is a two-terminal micropower band-gap voltage reference diode featuring low dynamic impedance and good temperature coefficient, operating over a 50µA to 4mA current range. On-chip trimming is used to provide tight voltage tolerance. Since the AMS124 band-gap reference uses only transistor.

AMS124 Datasheet (34.49 KB)

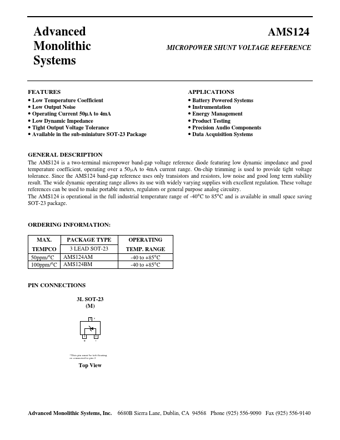

AMS124 Datasheet Preview — Preview of AMS124 PDF

Datasheet Details

Part number:

AMS124

Manufacturer:

Advanced Monolithic Systems

File Size:

34.49 KB

Description:

Micropower shunt voltage reference.
