AP1A003GMT-HF, N-CHANNEL ENHANCEMENT MODE POWER MOSFET

AP1A003GMT-HF Halogen-Free Product Advanced Power Electronics Corp.▼ Simple Drive Requirement ▼ SO-8 Compatible with Heatsink ▼ Low On-resistance ▼ .
AP1A003 series are from Advanced Power innovated design and silicon process technology to achieve the lowest possible onresistance and fast switching.

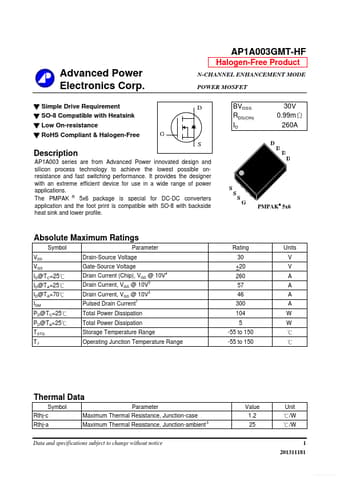

datasheet Preview Page 1 from Datasheet4u.com

AP1A003GMT-HF_AdvancedPowerElectronics.pdf

AP1A003GMT-HF Datasheet Preview — Preview of AP1A003GMT-HF PDF

Datasheet Details

Part number:

AP1A003GMT-HF

Manufacturer:

Advanced Power Electronics

File Size:

78.91 KB

Description:

N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The PMPAK ® 5x6 package is special for DC-DC converters application and the foot print is compatible with SO-8 with backside heat sink and lower profile. D D D S S S G PMPAK ® 5x6 Absolute Maximum Ratings Symbol VDS VGS ID@TC=25℃ ID@TA=25℃ ID@TA=70℃ IDM PD@TC=25℃ PD@TA=25℃ TSTG TJ Parameter
