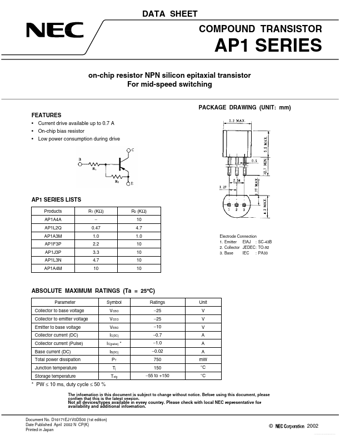

AP1A4M (AP1 Series) on-chip resistor NPN silicon epitaxial transistor

of circuits, software and other related information in this document are provided for illustrative purposes in semiconductor product operation and application examples. The incorporation of these circuits, software and information in the design of customer's equipment shall be done under the full r.

AP1A4M Features

* Current drive available up to 0.7 A

* On-chip bias resistor

* Low power consumption during drive AP1 SERIES LISTS Products AP1A4A AP1L2Q AP1A3M AP1F3P AP1J3P AP1L3N AP1A4M R1 (KΩ)

* 0.47 1.0 2.2 3.3 4.7 10 R2 (KΩ) 10 4.7 1.0 10 10 10 10 Electrode Connection 1. Emit
