AP1L2Q, AP1A4A Datasheet - NEC

AP1L2Q, AP1A4A, (AP1 Series) on-chip resistor NPN silicon epitaxial transistor

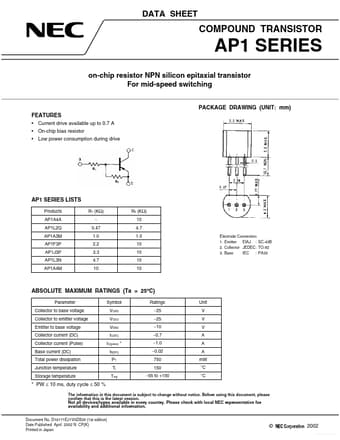

DATA SHEET COMPOUND TRANSISTOR AP1 SERIES on-chip resistor NPN silicon epitaxial transistor For mid-speed switching PACKAGE DRAWING (UNIT: mm) FEATU.
of circuits, software and other related information in this document are provided for illustrative purposes in semiconductor product operation and ap.

AP1A4A_NEC.pdf

AP1L2Q Datasheet Preview — This datasheet PDF includes multiple part numbers: AP1L2Q, AP1A4A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AP1L2Q, AP1A4A

Manufacturer:

NEC

File Size:

105.15 KB

Description:

(AP1 Series) on-chip resistor NPN silicon epitaxial transistor

Note:

This datasheet PDF includes multiple part numbers: AP1L2Q, AP1A4A.
Please refer to the document for exact specifications by model.

Features

* Current drive available up to 0.7 A
* On-chip bias resistor
* Low power consumption during drive AP1 SERIES LISTS Products AP1A4A AP1L2Q AP1A3M AP1F3P AP1J3P AP1L3N AP1A4M R1 (KΩ)
* 0.47 1.0 2.2 3.3 4.7 10 R2 (KΩ) 10 4.7 1.0 10 10 10 10 Electrode Connection 1. Emit
