AP1L3N, AP1A4A - (AP1 Series) on-chip resistor NPN silicon epitaxial transistor

Name: AP1L3N
SKU: AP1L3N-752855

NEC

📥 Download Datasheet

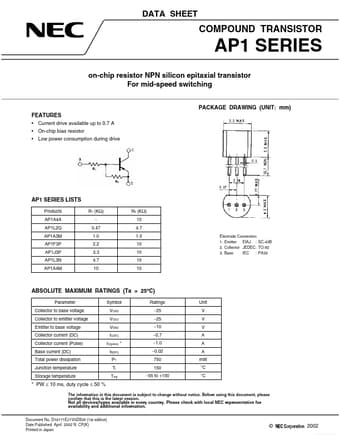

AP1L3N Datasheet Preview — This datasheet PDF includes multiple part numbers: AP1L3N, AP1A4A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	AP1L3N, AP1A4A
Manufacturer	NEC
File Size	105.15 KB
Description	(AP1 Series) on-chip resistor NPN silicon epitaxial transistor
Datasheet	AP1A4A_NEC.pdf
Note	This datasheet PDF includes multiple part numbers: AP1L3N, AP1A4A. Please refer to the document for exact specifications by model.

AP1L3N Product details

Description

of circuits, software and other related information in this document are provided for illustrative purposes in semiconductor product operation and application examples. While NEC end

Features

Current drive available up to 0.7 A.
On-chip bias resistor.
Low power consumption during drive AP1 SERIES LISTS Products AP1A4A AP1L2Q AP1A3M AP1F3P AP1J3P AP1L3N AP1A4M R1 (KΩ).
0.47 1.0 2.2 3.3 4.7 10 R2 (KΩ) 10 4.7 1.0 10 10 10 10 Electrode Connection 1. Emitter EIAJ : SC-43B 2. Collector JEDEC: TO-92 3. Base IEC : PA33.
