* Current drive available up to 0.7 A
* On-chip bias resistor
* Low power consumption during drive AP1 SERIES LISTS Products AP1A4A AP1L2Q AP1A3M AP1F3P AP1J3P AP1L3N AP1A4M R1 (KΩ)
* 0.47 1.0 2.2 3.3 4.7 10 R2 (KΩ) 10 4.7 1.0 10 10 10 10 Electrode Connection 1. Emit
AP1F3P
NEC
105.15 KB
(ap1 series) on-chip resistor npn silicon epitaxial transistor.

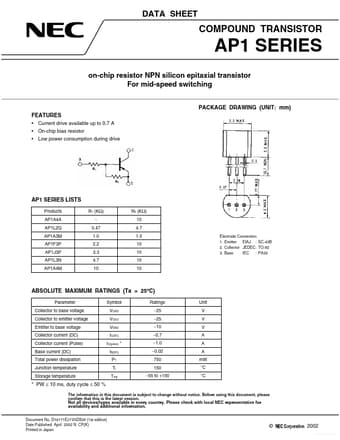

DATA SHEET
COMPOUND TRANSISTOR
AP1 SERIES
on-chip resistor NPN silicon epitaxial transistor For mid-speed switching
PACKAGE DRAWING (UNIT: mm) FEATU.
