AP1A3M, AP1A4A (AP1 Series) on-chip resistor NPN silicon epitaxial transistor

AP1A3M Description

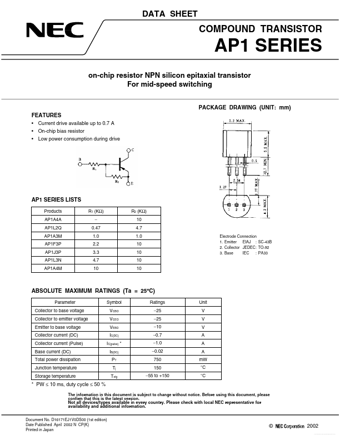

DATA SHEET COMPOUND TRANSISTOR AP1 SERIES on-chip resistor NPN silicon epitaxial transistor For mid-speed switching PACKAGE DRAWING (UNIT: mm) FEATU.
of circuits, software and other related information in this document are provided for illustrative purposes in semiconductor product operation and ap.

AP1A3M Features

* Current drive available up to 0.7 A
* On-chip bias resistor
* Low power consumption during drive AP1 SERIES LISTS Products AP1A4A AP1L2Q AP1A3M AP1F3P AP1J3P AP1L3N AP1A4M R1 (KΩ)
* 0.47 1.0 2.2 3.3 4.7 10 R2 (KΩ) 10 4.7 1.0 10 10 10 10 Electrode Connection 1. Emit

AP1A3M Applications

* of a semiconductor product depend on its quality grade, as indicated below. Customers must check the quality grade of each semiconductor product before using it in a particular application. "Standard": Computers, office equipment, communications equipment, test and measurement equipment, audio and v

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AP1A3M, AP1A4A. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AP1A3M, AP1A4A
Manufacturer
NEC
File Size
105.15 KB
Datasheet
AP1A4A_NEC.pdf
Description
(AP1 Series) on-chip resistor NPN silicon epitaxial transistor
Note
This datasheet PDF includes multiple part numbers: AP1A3M, AP1A4A.
Please refer to the document for exact specifications by model.
