AP3P052EN P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Advanced Power Electronics

Description

Advanced Power Electronics Corp.AP3P052EN Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement D ▼ Small Package.
AP3P052 series are from Advanced Power innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switchin.

📥 Download Datasheet

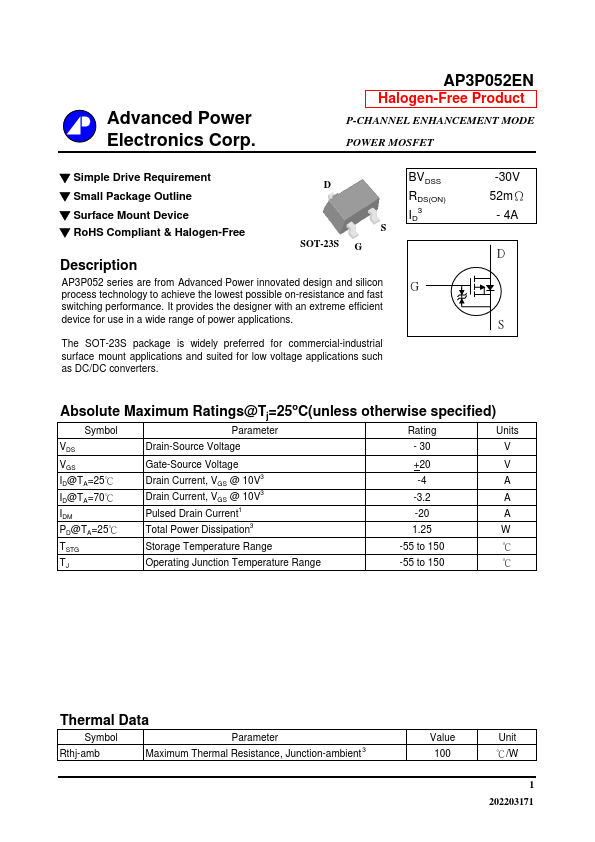

AP3P052EN Datasheet Preview — Preview of AP3P052EN PDF

Datasheet Specifications

Part number: AP3P052EN
Manufacturer: Advanced Power Electronics
File Size: 63.28 KB
Datasheet: AP3P052EN-AdvancedPowerElectronics.pdf
Description: P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The SOT-23S package is widely preferred for commercial-industrial surface mount applications and suited for low voltage applications such as DC/DC converters. BVDSS RDS(ON) ID3 G -30V 52mΩ - 4A D S Absolute Maximum Ratings@Tj=25o. C(unless otherwise specified) Symbol Parameter Rating Units
