AP3P020J P-CHANNEL ENHANCEMENT MODE POWER MOSFET

AP3P020J Description

Advanced Power Electronics Corp.AP3P020J Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% UIS Test D ▼ Simple Drive Requiremen.
AP3P020 series are from Advanced Power innovated design and silicon process technology to achieve the lowest possible onresistance and fast switching.

AP3P020J Applications

* The straight lead version TO-251 package is widely preferred for all commercial-industrial through hole applications. BVDSS RDS(ON) ID -30V 20mΩ -30A G DS TO-251(J) Absolute Maximum Ratings@Tj=25o. C(unless otherwise specified) Symbol Parameter Rating Units VDS VGS ID@TC=25℃ ID@TC=100℃ ID

📥 Download Datasheet

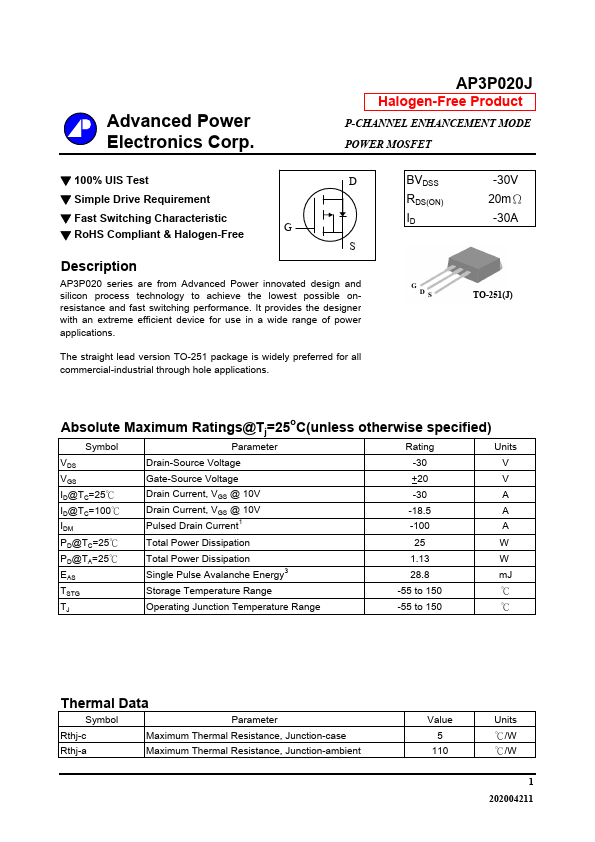

Preview of AP3P020J PDF

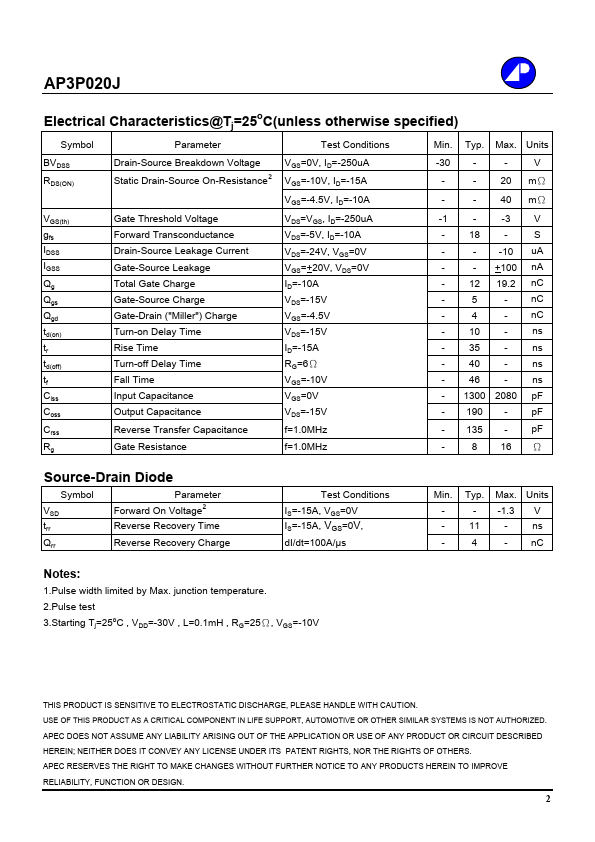

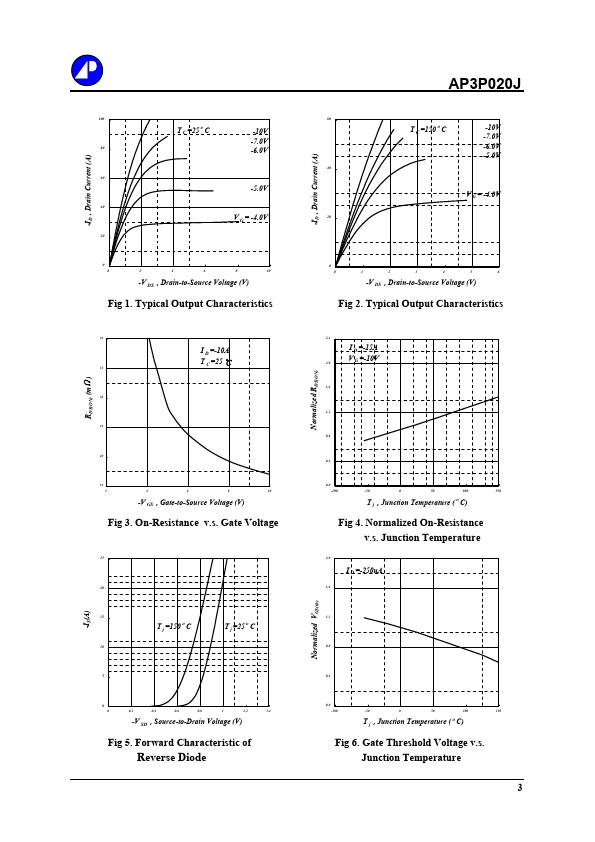

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AP3P020J
Manufacturer
Advanced Power Electronics
File Size
223.29 KB
Datasheet
AP3P020J-AdvancedPowerElectronics.pdf
Description
P-CHANNEL ENHANCEMENT MODE POWER MOSFET
