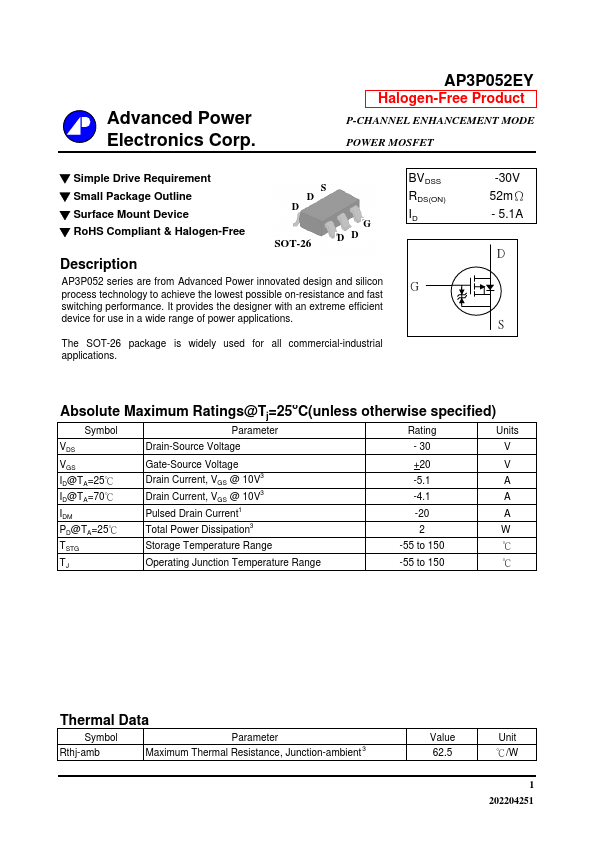

AP3P052EY P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Advanced Power Electronics

Description

Advanced Power Electronics Corp.AP3P052EY Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Small Package O.
AP3P052 series are from Advanced Power innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching.

📥 Download Datasheet

AP3P052EY Datasheet Preview — Preview of AP3P052EY PDF

Datasheet Specifications

Part number: AP3P052EY
Manufacturer: Advanced Power Electronics
File Size: 63.54 KB
Datasheet: AP3P052EY-AdvancedPowerElectronics.pdf
Description: P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The SOT-26 package is widely used for all commercial-industrial applications. BVDSS RDS(ON) ID G -30V 52mΩ - 5.1A D S Absolute Maximum Ratings@Tj=25o. C(unless otherwise specified) Symbol Parameter Rating Units VDS Drain-Source Voltage - 30 V VGS ID@TA=25℃ ID@TA=70℃ IDM PD@TA=25℃ TSTG T
