AP3P7R0EM P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Advanced Power Electronics

Description

Advanced Power Electronics Corp.AP3P7R0EM Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test ▼ Simple Drive Requirem.
AP3P7R0E series are from Advanced Power innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switchin.

📥 Download Datasheet

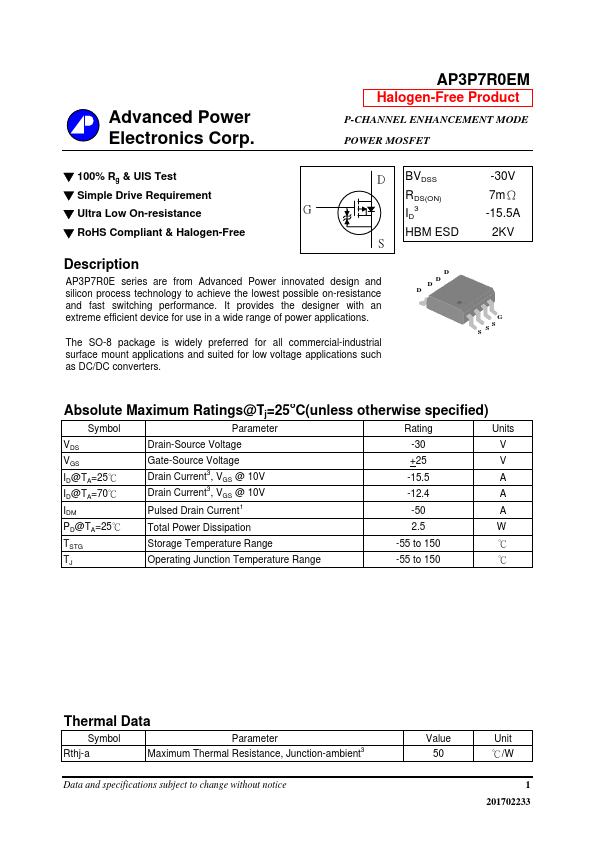

AP3P7R0EM Datasheet Preview — Preview of AP3P7R0EM PDF

Datasheet Specifications

Part number: AP3P7R0EM
Manufacturer: Advanced Power Electronics
File Size: 70.26 KB
Datasheet: AP3P7R0EM-AdvancedPowerElectronics.pdf
Description: P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The SO-8 package is widely preferred for all commercial-industrial surface mount applications and suited for low voltage applications such as DC/DC converters. BVDSS RDS(ON) ID3 HBM ESD D D D D -30V 7mΩ -15.5A 2KV G S SS Absolute Maximum Ratings@Tj=25o. C(unless otherwise specified) Symbol Par
