AP4502GM-HF, N AND P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Advanced Power Electronics Corp.AP4502GM-HF Halogen-Free Product N AND P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Low Gat.
AP4502 series are from Advanced Power innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching.

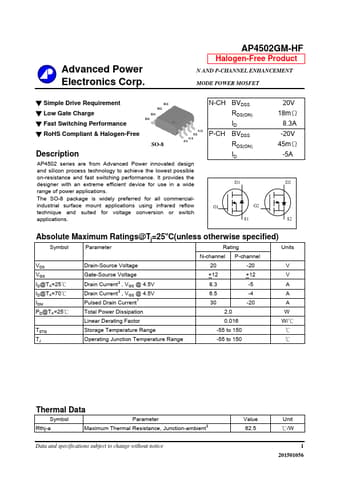

datasheet Preview Page 1 from Datasheet4u.com

AP4502GM-HF-AdvancedPowerElectronics.pdf

AP4502GM-HF Datasheet Preview — Preview of AP4502GM-HF PDF

Datasheet Details

Part number:

AP4502GM-HF

Manufacturer:

Advanced Power Electronics

File Size:

118.44 KB

Description:

N AND P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The SO-8 package is widely preferred for all commercialindustrial surface mount applications using infrared reflow technique and suited for voltage conversion or switch applications. N-CH P-CH G1 BVDSS RDS(ON) ID BVDSS RDS(ON) ID D1 G2 S1 20V 18mΩ 8.3A -20V 45mΩ -5A D2 S2 Absolute Maximum Ratin
