AP4525GEH Datasheet - Advanced Power Electronics

AP4525GEH N AND P-CHANNEL ENHANCEMENT MODE POWER MOSFET

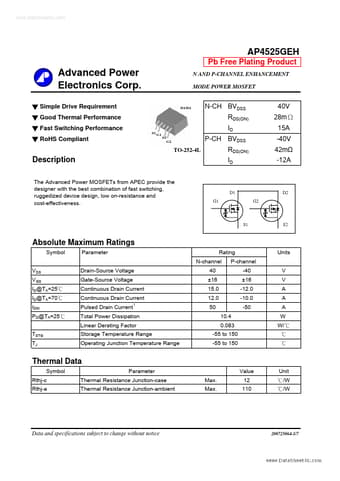

The Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. D1 G1 G2 D2 S1 S2 Absolute Maximum Ratings Symbol VDS VGS ID@TA=25℃ ID@TA=70℃ IDM PD@TA=25℃ TSTG TJ Parameter Drain-Source V.

AP4525GEH_AdvancedPowerElectronics.pdf

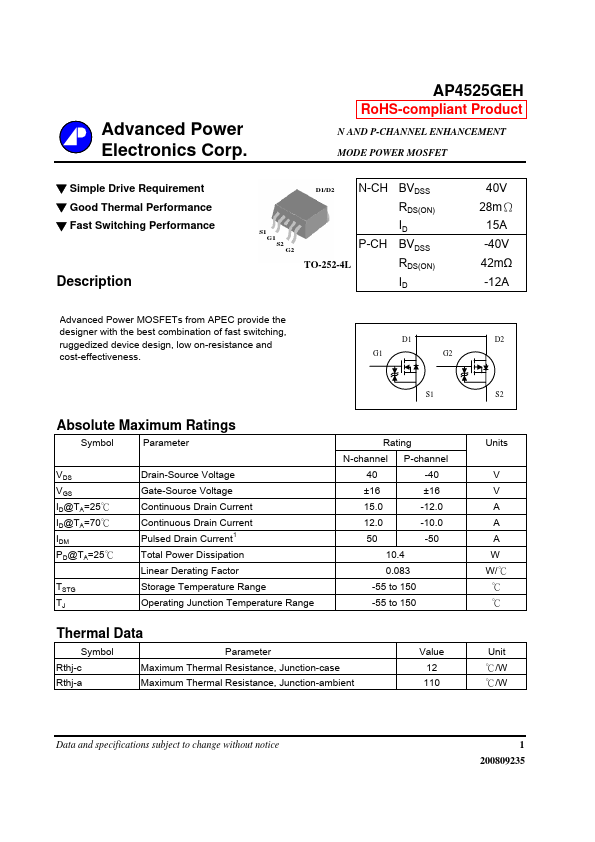

AP4525GEH Datasheet Preview — Preview of AP4525GEH PDF

Datasheet Details

Part number:

AP4525GEH

Manufacturer:

Advanced Power Electronics

File Size:

152.95 KB

Description:

N and p-channel enhancement mode power mosfet.
