AP4525GEH-HF Datasheet - Advanced Power Electronics

AP4525GEH-HF N AND P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and costeffectiveness. G1 BVDSS RDS(ON) ID BVDSS RDS(ON) ID D1 G2 40V 28mΩ 15A -40V 42mΩ -12A D2 S1 S2 Absolute Maximum Ratings@Tj=25oC(unless otherwis.

AP4525GEH-HF Datasheet (84.98 KB)

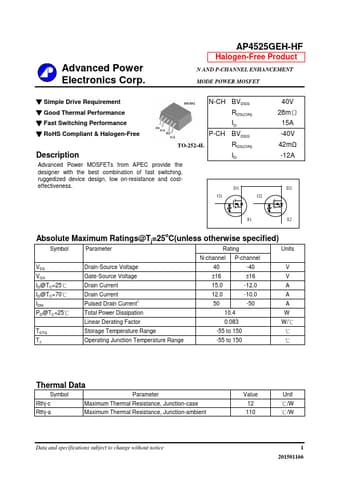

AP4525GEH-HF Datasheet Preview — Preview of AP4525GEH-HF PDF

Datasheet Details

Part number:

AP4525GEH-HF

Manufacturer:

Advanced Power Electronics

File Size:

84.98 KB

Description:

N and p-channel enhancement mode power mosfet.
