AP4525GEH-A Datasheet - Advanced Power Electronics

AP4525GEH-A N AND P-CHANNEL ENHANCEMENT MODE POWER MOSFET

D1/D2 N-CH S1 G1 S2 G2 P-CH TO-252-4L BVDSS RDS(ON) ID BVDSS RDS(ON) ID 40V 26mΩ 8.3A -40V 40mΩ -7A The Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. D1 G1 G2 D2 Absol.

AP4525GEH-A Datasheet (187.45 KB)

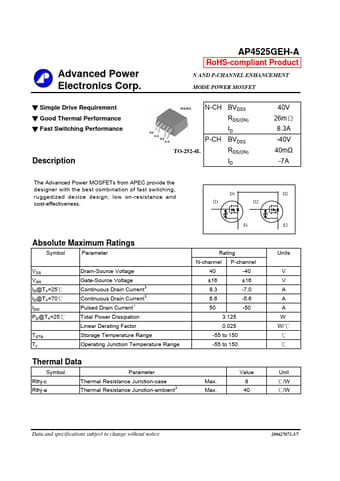

AP4525GEH-A Datasheet Preview — Preview of AP4525GEH-A PDF

Datasheet Details

Part number:

AP4525GEH-A

Manufacturer:

Advanced Power Electronics

File Size:

187.45 KB

Description:

N and p-channel enhancement mode power mosfet.
