AP4569GM - N AND P-CHANNEL ENHANCEMENT MODE POWER MOSFET

AP4569GM Description

www.DataSheet4U.com AP4569GM Pb Free Plating Product Advanced Power Electronics Corp.▼ Simple Drive Requirement ▼ Fast Switching Performance ▼ RoHS.
The Advanced Power MOSFETs from APEC provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and.

AP4569GM Applications

* and suited for low voltage applications such as DC/DC converters. D1 D2 G1 S1 G2 S2 Absolute Maximum Ratings Symbol VDS VGS ID@TA=25℃ ID@TA=70℃ IDM PD@TA=25℃ TSTG TJ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Continuous Drain Current Pulsed Drain Current 1 3 3

📥 Download Datasheet

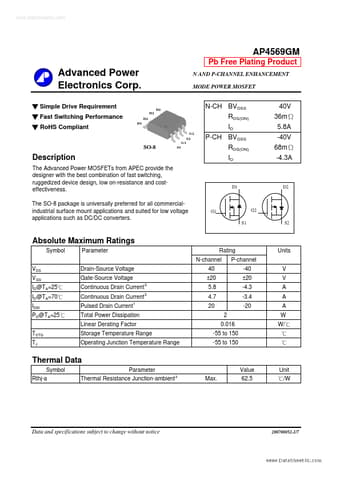

Preview of AP4569GM PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AP4569GM
Manufacturer
Advanced Power Electronics
File Size
120.12 KB
Datasheet
AP4569GM_AdvancedPowerElectronics.pdf
Description
N AND P-CHANNEL ENHANCEMENT MODE POWER MOSFET
