ALN2045AT

Internally Matched LNA Module

ALN2045AT Features

* S21 = 14.8 dB @ 1920 MHz = 13.8 dB @ 2170 MHz

* NF of 0.65 dB over Frequency

* Unconditionally Stable

* Single 5V Supply

* High OIP3 @ Low Current Specifications (in Production) Typ. @ T = 25°C, Vs = 5 V, Freq. = 2045 MHz, Zo.sys = 50 ohm Parameter Frequency Range Gain Gain F

ALN2045AT General Description

The plerowTM ALN-series is the compactly designed surface-mount module for the use of the LNA with or without the following gain blocks in the infrastructure equipment of the mobile wireless (CDMA, GSM, PCS, PHS, WCDMA, DMB, WLAN, WiBro, WiMAX), GPS, satellite communication terminals, CATV and so on.

ALN2045AT Datasheet (522.87 KB)

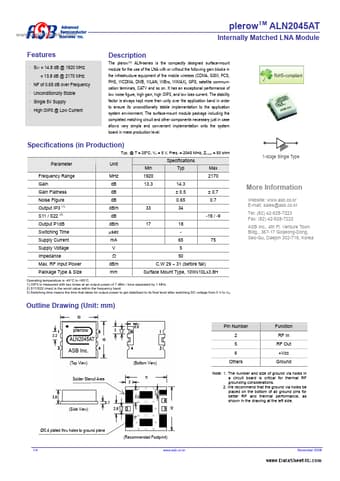

Preview of ALN2045AT PDF

Datasheet Details

Part number:

ALN2045AT

Manufacturer:

Advanced Semiconductor

File Size:

522.87 KB

Description:

Internally matched lna module.
