ALN0070WT

Internally Matched LNA

ALN0070WT Features

* S21 = 22.2 dB@60 MHz = 21.8 dB@80 MHz

* NF of 0.9 dB over Frequency

* Unconditionally Stable

* Single 5 V Supply

* High OIP3 at Low Current Description The plerowTM ALN-series is the compactly designed surface-mount module for the use of the LNA with or without the following g

ALN0070WT General Description

The plerowTM ALN-series is the compactly designed surface-mount module for the use of the LNA with or without the following gain blocks in the infrastructure equipment of the mobile wireless (CDMA, GSM, PCS, PHS, WCDMA, DMB, WLAN, WiBro, WiMAX), GPS, satellite communication terminals, CATV and so on.

ALN0070WT Datasheet (481.58 KB)

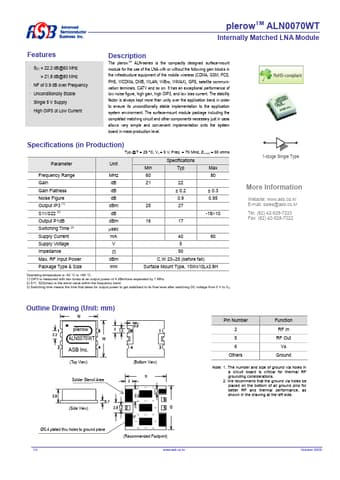

Preview of ALN0070WT PDF

Datasheet Details

Part number:

ALN0070WT

Manufacturer:

ASB

File Size:

481.58 KB

Description:

Internally matched lna.
