ALN0140WT

Internally Matched LNA Module

ALN0140WT Features

* S21 = 25.2 dB @ 125 MHz = 24.8 dB @ 155 MHz

* NF of 0.7 dB over Frequency

* Unconditionally Stable

* Single 5V Supply

* High OIP3 @ Low Current Specifications (in Production) Typ. @ T = 25°C, Vs = 5 V, Freq. =140 MHz, Zo.sys = 50 ohm Parameter Frequency Range Gain Gain Flatne

ALN0140WT General Description

The plerowTM ALN-series is the compactly designed surface-mount module for the use of the LNA with or without the following gain blocks in the infrastructure equipment of the mobile wireless (CDMA, GSM, PCS, PHS, WCDMA, DMB, WLAN, WiBro, WiMAX), GPS, satellite communication terminals, CATV and so on.

ALN0140WT Datasheet (443.52 KB)

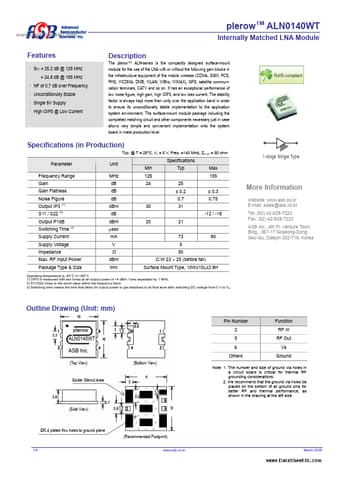

Preview of ALN0140WT PDF

Datasheet Details

Part number:

ALN0140WT

Manufacturer:

Advanced Semiconductor

File Size:

443.52 KB

Description:

Internally matched lna module.
