ALN0195AT

Internally Matched LNA Module

ALN0195AT Features

* S21 = 20.5 dB @ 180 MHz = 21.5 dB @ 210 MHz

* NF of 1.0 dB over Frequency

* Unconditionally Stable

* Single 5V Supply

* High OIP3 @ Low Current Specifications (in Production) Typ. @ T = 25°C, Vs = 5 V, Freq. = 195 MHz, Zo.sys =50 ohm Parameter Frequency Range Gain Gain Flatne

ALN0195AT General Description

The plerowTM ALN-series is the compactly designed surface-mount module for the use of the LNA with or without the following gain blocks in the infrastructure equipment of the mobile wireless (CDMA, GSM, PCS, PHS, WCDMA, DMB, WLAN, WiBro, WiMAX), GPS, satellite communication terminals, CATV and so on.

ALN0195AT Datasheet (329.92 KB)

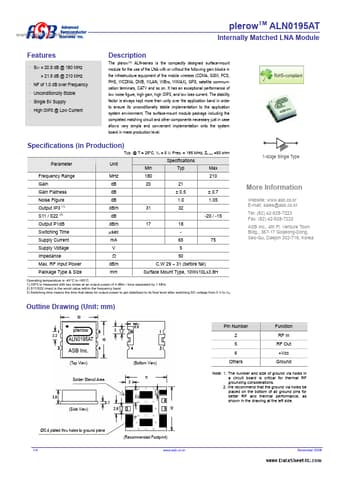

Preview of ALN0195AT PDF

Datasheet Details

Part number:

ALN0195AT

Manufacturer:

Advanced Semiconductor

File Size:

329.92 KB

Description:

Internally matched lna module.
