ALN0071WT

Internally Matched LNA Module

ALN0071WT Features

* S21 = 22.1 dB@65 MHz = 21.9 dB@75 MHz

* NF of 0.9 dB over Frequency

* Unconditionally Stable

* Single 5 V Supply

* High OIP3 at Low Current Description The plerowTM ALN-series is the compactly designed surface-mount module for the use of the LNA with or without the following g

ALN0071WT General Description

The plerowTM ALN-series is the compactly designed surface-mount module for the use of the LNA with or without the following gain blocks in the infrastructure equipment of the mobile wireless (CDMA, GSM, PCS, PHS, WCDMA, DMB, WLAN, WiBro, WiMAX), GPS, satellite communication terminals, CATV and so on.

ALN0071WT Datasheet (507.09 KB)

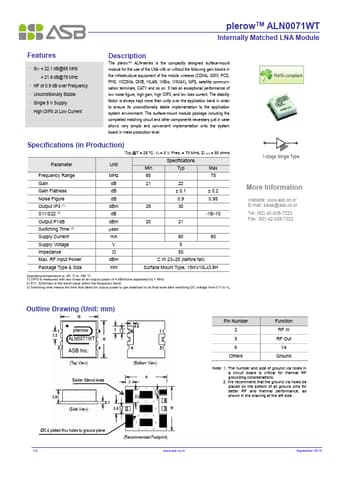

Preview of ALN0071WT PDF

Datasheet Details

Part number:

ALN0071WT

Manufacturer:

ASB

File Size:

507.09 KB

Description:

Internally matched lna module.
