ALN0071 - Internally Matched LNA Module

Product Overview

ASB

ALN0071 Internally Matched LNA Module by ASB - Datasheet Preview — Datasheet preview – ALN0071

Datasheet Details

Part number	ALN0071
Manufacturer	ASB
File Size	486.20 KB
Description	Internally Matched LNA Module
Datasheet	ALN0071 Datasheet

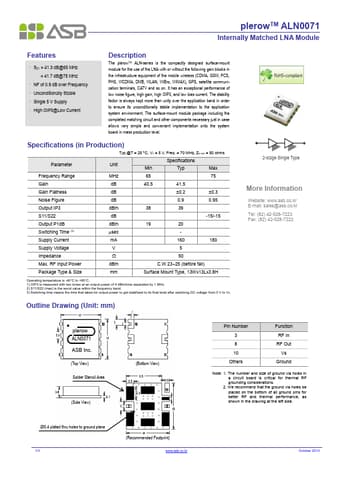

Additional preview pages of the ALN0071 datasheet.

Product details

Description

The plerowTM ALN-series is the compactly designed surface-mount module for the use of the LNA with or without the following gain blocks in the infrastructure equipment of the mobile wireless (CDMA, GSM, PCS, PHS, WCDMA, DMB, WLAN, WiBro, WiMAX), GPS, satellite communication terminals, CATV and so on.

Features

S21 = 41.3 dB@65 MHz = 41.7 dB@75 MHz.
NF of 0.9 dB over Frequency.
Unconditionally Stable.
Single 5 V Supply.
High OIP3@Low Current.
