ALN0070

Internally Matched LNA Module

ALN0070 Features

* S21 = 35.8 dB@65 MHz = 36.2 dB@75 MHz

* NF of 0.9 dB over Frequency

* Unconditionally Stable

* Single 5 V Supply

* High OIP3@Low Current Description The plerowTM ALN-series is the compactly designed surface-mount module for the use of the LNA with or without the following gain

ALN0070 General Description

The plerowTM ALN-series is the compactly designed surface-mount module for the use of the LNA with or without the following gain blocks in the infrastructure equipment of the mobile wireless (CDMA, GSM, PCS, PHS, WCDMA, DMB, WLAN, WiBro, WiMAX), GPS, satellite communication terminals, CATV and so on.

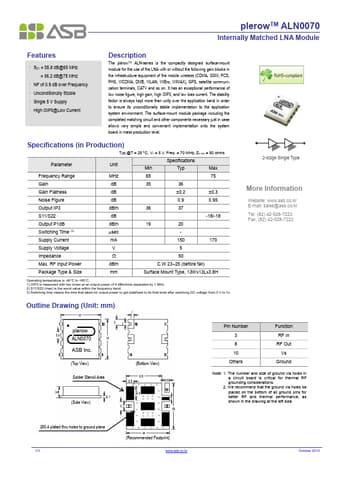

ALN0070 Datasheet (486.69 KB)

Preview of ALN0070 PDF

Datasheet Details

Part number:

ALN0070

Manufacturer:

ASB

File Size:

486.69 KB

Description:

Internally matched lna module.
