ALN0098

Internally Matched LNA Module

ALN0098 Features

* S21 = 35.1 dB @ 88 MHz = 34.9 dB @ 108 MHz

* NF of 1.3 dB over Frequency

* Unconditionally Stable

* Single 5V Supply

* High OIP3 @ Low Current Specifications (in Production) Typ. @ T = 25°C, Vs = 5 V, Freq. = 98 MHz, Zo.sys = 50 ohm Parameter Frequency Range Gain Gain Flatnes

ALN0098 General Description

The plerowTM ALN-series is the compactly designed surface-mount module for the use of the LNA with or without the following gain blocks in the infrastructure equipment of the mobile wireless (CDMA, GSM, PCS, PHS, WCDMA, DMB, WLAN, WiBro, WiMAX), GPS, satellite communication terminals, CATV and so on.

ALN0098 Datasheet (382.82 KB)

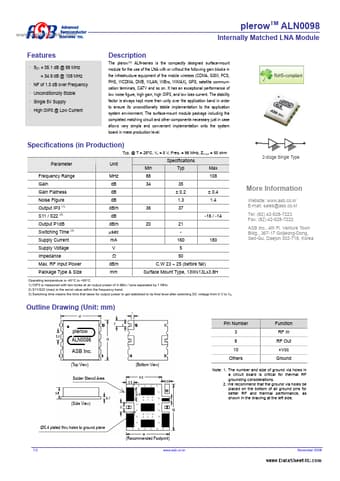

Preview of ALN0098 PDF

Datasheet Details

Part number:

ALN0098

Manufacturer:

Advanced Semiconductor

File Size:

382.82 KB

Description:

Internally matched lna module.
