ALN0196AT - Internally Matched LNA Module

Advanced Semiconductor

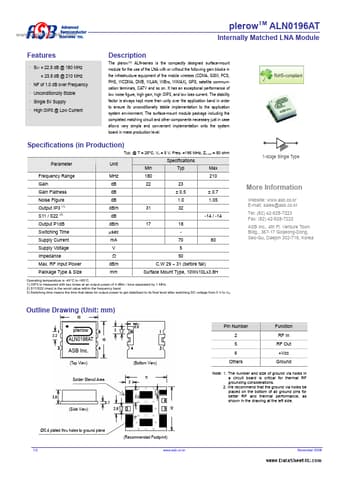

ALN0196AT Datasheet Preview — Preview of ALN0196AT PDF

Datasheet Details

Part number	ALN0196AT
Manufacturer	Advanced Semiconductor
File Size	256.13 KB
Description	Internally Matched LNA Module
Datasheet	ALN0196AT_AdvancedSemiconductor.pdf

ALN0196AT Product details

Description

The plerowTM ALN-series is the compactly designed surface-mount module for the use of the LNA with or without the following gain blocks in the infrastructure equipment of the mobile wireless (CDMA, GSM, PCS, PHS, WCDMA, DMB, WLAN, WiBro, WiMAX), GPS, satellite communication terminals, CATV and so on.

Features

S21 = 22.5 dB @ 180 MHz = 23.5 dB @ 210 MHz.
NF of 1.0 dB over Frequency.
Unconditionally Stable.
Single 5V Supply.
High OIP3 @ Low Current Specifications (in Production) Typ. @ T = 25°C, Vs = 5 V, Freq. =195 MHz, Zo. sys = 50 ohm Parameter Frequency Range Gain Gain Flatness Noise Figure Output IP3 S11 / S22 (1) (2) Unit MHz dB dB dB dBm dB dBm µsec mA V Ω dBm mm Specifications Min 180 22 23 ± 0.5 1.0 31 17 32 -14 / -14 18 70 5 50 C. W 29 ~ 31 (before fail) Surface Mo.
