ALN2045R2 - Internally Matched LNA Module

The plerowTM ALN-series is the compactly designed surface-mount module for the use of the LNA with or without the following gain blocks in the infrastructure equipment of the mobile wireless (CDMA, GSM, PCS, PHS, WCDMA, DMB, WLAN, WiBro, WiMAX), GPS, satellite communication terminals, CATV and so on

ALN2045R2 Features

* S21 = 26.3 dB @ 1920 MHz = 24.7 dB @ 2170 MHz

* NF of 0.95 dB over Frequency

* Unconditionally Stable

* Single 5V Supply

* High OIP3 @ Low Current Specifications (in Production) Typ. @ T = 25°C, Vs = 5 V, Freq. = 2045 MHz, Zo.sys = 50 ohm 2-stage Single Type Parameter Freque

ALN2045R2_AdvancedSemiconductor.pdf

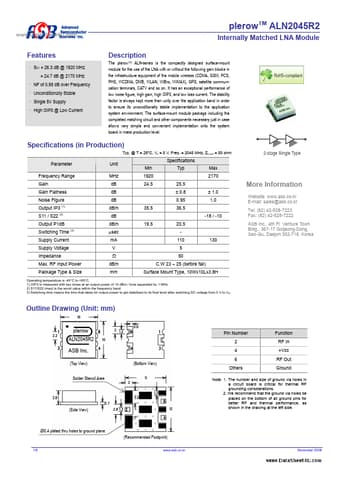

Preview of ALN2045R2 PDF
