AT1675-0 Datasheet - Aero Antenna

AT1675-0 GPS Antenna

DATE APPROVED J UPDATED PER ECO 9280 06/22/10 CHANGE RADOME'S RADIUS FROM R.38 TO R.44 AT1675-0 D SPECIFICATION: FREQUENCY: POLARIZATION: AXIAL RATIO: RADIATION COVERAGE: AMPLIFIER: NOISE FIGURE: IMPEDANCE: 1565-1615 MHz RIGHT HAND CIRCULAR 3 dB MAX AT BORE SIGHT ELEVATION > 15° 10° 5° .

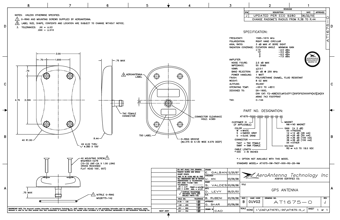

8 7 6 5 NOTES: UNLESS OTHERWISE SPECIFIED. 1 O-RING AND MOUNTING SCREWS SUPPLIED BY AEROANTENNA. 2 LABEL SIZE, SHAPE, CONTENTS AND LOCATION ARE SUBJECT TO CHANGE WITHOUT NOTICE. D 3. TOLERANCES: .XX = .03 .XXX = .010 .70 .70 3.00 1.600 C 4.70 3.300 .75 MAX 2 AEROANTENNA LABEL .20 TNC FEMALE CONNECTOR B 4X R1.00 R.44 4X ∅.22 THRU w ∅.380 X 100° 4X MOUNTING SCREW 1 MS24693-C276 (10-32 UNF-2A X 1.00 LONG CROSS RECESSED FLAT HEAD 100°, SST) TSO LABEL A .75 MAX 1 NITRILE O-RING .

AT1675-0 Datasheet (122.41 KB)

AT1675-0 Datasheet Preview — Preview of AT1675-0 PDF

Datasheet Details

Part number:

AT1675-0

Manufacturer:

Aero Antenna

File Size:

122.41 KB

Description:

Gps antenna.
