AT16373F

AT16373 Fast Logic 16-Bit Transparent Latch

AT16373F Features

* Fastest Propagation Speeds in the Industry TPD (F grade) = 2.5 ns, TPD (G grade) = 2.0 ns Maximum derating for capacitive loads 1.5ns/100 pF (F grade) and 1.1ns/100 pF (G grade) Very low ground bounce < 0.6V @ VCC =5.00V, Ta=25°

AT16373F General Description

Atmel’s AT16373 devices provide maximum speed in temporary data storage. They can be operated as either two separate 8 bit latches or as a single 16-bit latch by use of the output enable and the latch enable. The AT16373 has very low ground bounce and excellent input noise rejection, giving the user.

AT16373F Datasheet (54.82 KB)

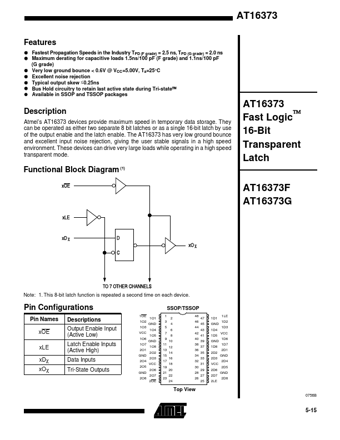

Preview of AT16373F PDF

Datasheet Details

Part number:

AT16373F

Manufacturer:

ATMEL Corporation

File Size:

54.82 KB

Description:

At16373 fast logic 16-bit transparent latch.
