AT16244F, AT16244 Fast Logic 16-Bit Buffer/Line Driver

AT16244 .
Atmel’s Fast Logic 16-Bit Buffer/Line driver provides bus interface and signal buffering at the fastest speeds available in the industry.

datasheet Preview Page 1 from Datasheet4u.com

AT16244F_ATMELCorporation.pdf

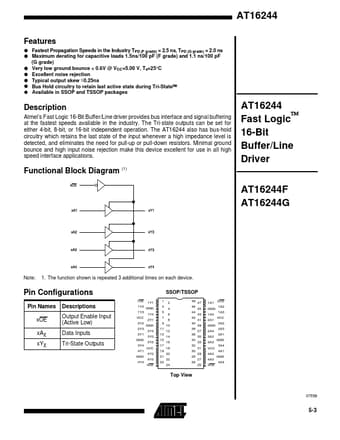

AT16244F Datasheet Preview — Preview of AT16244F PDF

Datasheet Details

Part number:

AT16244F

Manufacturer:

ATMEL Corporation

File Size:

53.93 KB

Description:

AT16244 Fast Logic 16-Bit Buffer/Line Driver

Features

* Fastest Propagation Speeds in the Industry TPD (F grade) = 2.5 ns, TPD (G grade) = 2.0 ns Maximum derating for capacitive loads 1.5ns/100 pF (F grade) and 1.1 ns/100 pF (G grade) Very low ground bounce < 0.6V @ VCC =5.00 V, Ta=2

Applications

* AT16244 Fast Logic™ 16-Bit Buffer/Line Driver AT16244F AT16244G Functional Block Diagram (1) Note: 1. The function shown is repeated 3 additional times on each device. SSOP/TSSOP 1OE 1Y1 GND 1Y4 2Y1 GND 2Y4 3Y2 3Y3 VCC 4Y2 4Y3 4OE 1 3 5 7 9 11 13 15 17 19 21 23 2 4 6 8 10 12 14 16 18 20 22 24 4
