AT16373G Datasheet - ATMEL Corporation

AT16373G AT16373 Fast Logic 16-Bit Transparent Latch

Atmel’s AT16373 devices provide maximum speed in temporary data storage. They can be operated as either two separate 8 bit latches or as a single 16-bit latch by use of the output enable and the latch enable. The AT16373 has very low ground bounce and excellent input noise rejection, giving the user.

AT16373G Features

* Fastest Propagation Speeds in the Industry TPD (F grade) = 2.5 ns, TPD (G grade) = 2.0 ns Maximum derating for capacitive loads 1.5ns/100 pF (F grade) and 1.1ns/100 pF (G grade) Very low ground bounce < 0.6V @ VCC =5.00V, Ta=25°

AT16373G Datasheet (54.82 KB)

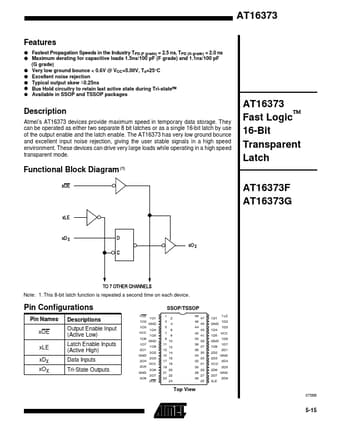

Preview of AT16373G PDF

Datasheet Details

Part number:

AT16373G

Manufacturer:

ATMEL Corporation

File Size:

54.82 KB

Description:

At16373 fast logic 16-bit transparent latch.
