AT16245F

AT16245 Fast Logic Bi-Directional Transceiver

AT16245F Features

* Fastest Propagation Speeds in the Industry TPD (F grade) = 2.5 ns, TPD (G grade) = 2.0 ns Maximum Derating for Capacitive Loads 1.5ns/100pF (F grade) and 1.1ns/100pF (G grade) Very Low Ground Bounce

AT16245F General Description

Atmel’s new family of high speed CMOS transceivers offers the best of all worlds to the user requiring stability and ultra fast speeds. These transceivers, which can function as two 8-bit devices or one 16-bit device, are capable of improving processing efficiency as much as 6% by reducing the numbe.

AT16245F Datasheet (66.60 KB)

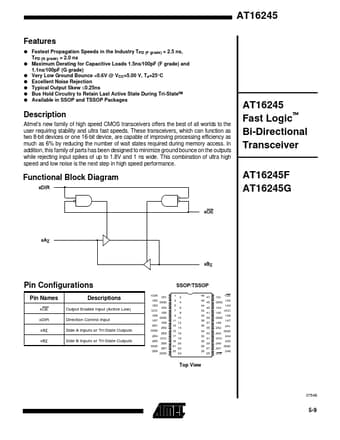

Preview of AT16245F PDF

Datasheet Details

Part number:

AT16245F

Manufacturer:

ATMEL Corporation

File Size:

66.60 KB

Description:

At16245 fast logic bi-directional transceiver.
