AT16244G Datasheet - ATMEL Corporation

AT16244G AT16244 Fast Logic 16-Bit Buffer/Line Driver

Atmel’s Fast Logic 16-Bit Buffer/Line driver provides bus interface and signal buffering at the fastest speeds available in the industry. The Tri-state outputs can be set for either 4-bit, 8-bit, or 16-bit independent operation. The AT16244 also has bus-hold circuitry which retains the last state of.

AT16244G Features

* Fastest Propagation Speeds in the Industry TPD (F grade) = 2.5 ns, TPD (G grade) = 2.0 ns Maximum derating for capacitive loads 1.5ns/100 pF (F grade) and 1.1 ns/100 pF (G grade) Very low ground bounce < 0.6V @ VCC =5.00 V, Ta=2

AT16244G_ATMELCorporation.pdf

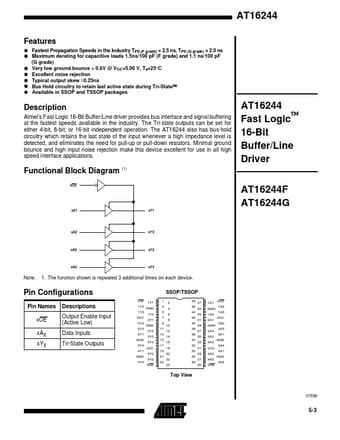

Preview of AT16244G PDF
AT16244G Datasheet Preview Page 2 AT16244G Datasheet Preview Page 3

Datasheet Details

Part number:

AT16244G

Manufacturer:

ATMEL Corporation

File Size:

53.93 KB

Description:

At16244 fast logic 16-bit buffer/line driver.
