AT1675-80 Datasheet - Aero Antenna

AT1675-80 AMSS / GPS Antenna

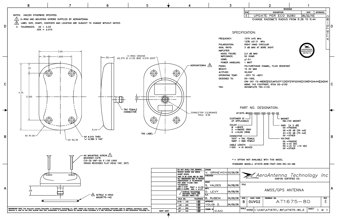

DATE APPROVED E UPDATE PER ECO 9280 06/22/10 CHANGE RADOME'S RADIUS FROM R.38 TO R.44 AT1675-80 D SPECIFICATION: FREQUENCY: POLARIZATION: AXIAL RATIO: AMPLIFIER: NOISE FIGURE: IMPEDANCE: VSWR: POWER HANDLING: FINISH: WEIGHT: ALTITUDE: OPERATING TEMP: DESIGNED TO: TSO: 1570 ±45 MHz 1238 ±2.

8 7 6 5 NOTES: UNLESS OTHERWISE SPECIFIED. 1 O-RING AND MOUNTING SCREWS SUPPLIED BY AEROANTENNA. 2 LABEL SIZE, SHAPE, CONTENTS AND LOCATION ARE SUBJECT TO CHANGE WITHOUT NOTICE. D 3. TOLERANCES: .XX = .03 .XXX = .010 .70 .70 3.00 1.600 C 4.70 3.300 .92 O-RING GROOVE ∅2.375 ID X.130 WIDE X.070 DEEP .20 TNC FEMALE CONNECTOR B 4X R1.00 2X R2.35 R.44 4X ∅.210 THRU w ∅.380 X 100° TSO LABEL 4X MOUNTING SCREW 1 MS24693-C276 (10-32 UNF-2A X 1.00 LONG CROSS RECESSED FLAT HEAD 100°,.

AT1675-80-AeroAntenna.pdf

AT1675-80 Datasheet Preview — Preview of AT1675-80 PDF

Datasheet Details

Part number:

AT1675-80

Manufacturer:

Aero Antenna

File Size:

117.74 KB

Description:

Amss / gps antenna.
