AT1604 Datasheet, controller equivalent, Aimtron Technology

AT1604 Features

  • Controller ˙Drives two N-channel MOSFETs ˙Operates from +5V and +12V input ˙Simple single-loop control -Voltage-mode PWM control ˙Fast transient response - High-bandwidth error amplifier - Full 0%

PDF File Details

Part number:

AT1604

Manufacturer:

Aimtron Technology

File Size:

188.70kb

Download:

📄 Datasheet

Description:

5-bit synchronous-rectifier pwm controller. The AT1604 provides complete control and protection for a DC-DC converter optimized for high-performance microprocessor applications.

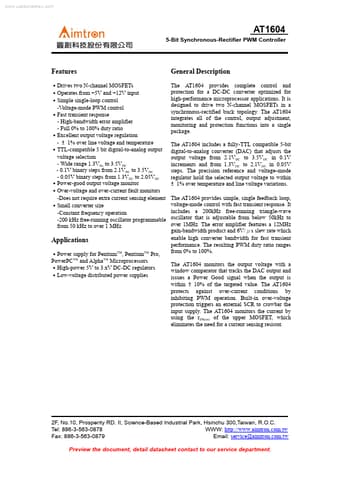

Datasheet Preview: AT1604 📥 Download PDF (188.70kb)
Page 2 of AT1604

AT1604 Application

  • Applications It is designed to drive two N-channel MOSFETs in a synchronous-rectified buck topology. The AT1604 integrates all of the control, outp
