UT54ACS164 - 8-Bit Shift Registers

Product Overview

Aeroflex Circuit Technology

Part number	UT54ACS164
Manufacturer	Aeroflex Circuit Technology
File Size	236.47 KB
Description	8-Bit Shift Registers
Datasheet	UT54ACS164 Datasheet

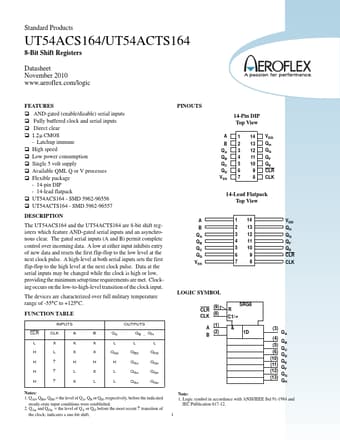

Additional preview pages of the UT54ACS164 datasheet.

The UT54ACS164 and the UT54ACTS164 are 8-bit shift registers which feature AND-gated serial inputs and an asynchronous clear.

AND-gated (enable/disable) serial inputs Fully buffered clock and serial inputs Direct clear 1.2μ CMOS - Latchup immune High speed Low power consumption Single 5 volt supply Available QML Q or V processes Flexible package - 14-pin DIP - 14-lead flatpack UT54ACS164 - SMD 5962-96556 UT54ACTS164 - SMD 5962-96557.
