UT54ACS164245SEI Schmitt CMOS 16-bit Bidirectional MultiPurpose Transceiver

📥 Download Datasheet  Datasheet Preview Page 1

Description

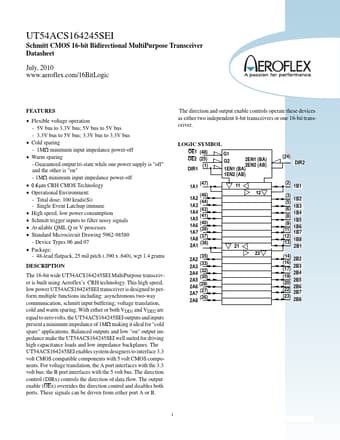

UT54ACS164245SEI Schmitt CMOS 16-bit Bidirectional MultiPurpose Transceiver Datasheet July, 2010 www.aeroflex.com/16BitLogic .
The 16-bit wide UT54ACS164245SEI MultiPurpose transceiver is built using Aeroflex’s CRH technology.

📥 Download Datasheet

Preview of UT54ACS164245SEI PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
UT54ACS164245SEI
Manufacturer
Aeroflex Circuit Technology
File Size
144.16 KB
Datasheet
UT54ACS164245SEI-AeroflexCircuitTechnology.pdf
Description
Schmitt CMOS 16-bit Bidirectional MultiPurpose Transceiver

Features

* Flexible voltage operation - 5V bus to 3.3V bus; 5V bus to 5V bus - 3.3V bus to 5V bus; 3.3V bus to 3.3V bus
* Cold sparing - 1MΩ minimum input impedance power-off
* Warm sparing - Guaranteed output tri-state while one power supply is "off" and the other is "on" - 1MΩ minim

Applications

* Balanced outputs and low "on" output impedance make the UT54ACS164245SEI well suited for driving high capacitance loads and low impedance backplanes. The UT54ACS164245SEI enables system designers to interface 3.3 volt CMOS compatible components with 5 volt CMOS components. For voltage translation,
