UT54ACS164E - 8-Bit Shift Registers

UT54ACS164E Description

UT54ACS164E/UT54ACTS164E 8-Bit Shift Registers October, 2008 www.aeroflex.com/Logic .
The UT54ACS164E and the UT54ACTS164E are 8-bit shift registers which feature AND-gated serial inputs and an asynchronous clear.

UT54ACS164E Features

* AND-gated (enable/disable) serial inputs
* Fully buffered clock and serial inputs
* Direct clear
* 0.6μm CRH CMOS Process - Latchup immune
* High speed
* Low power consumption
* Wide operating power supply from 3.0V to 5.5V
* Availabl

📥 Download Datasheet

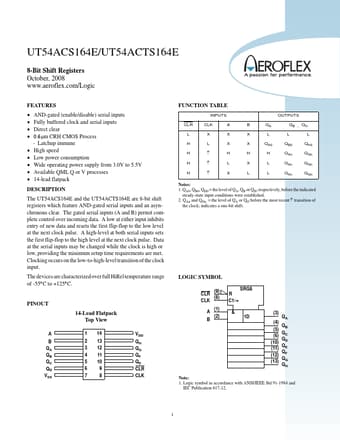

Preview of UT54ACS164E PDF
datasheet Preview Page 2 datasheet Preview Page 3
