UT54ACS164245S

RadHard Schmitt CMOS 16-bit Bidirectional MultiPurpose Transceiver

UT54ACS164245S Features

* Voltage translation - 5V bus to 3.3V bus - 3.3V bus to 5V bus

* Cold sparing - 1M Ω minimum input impedance power-off

* 0.6µm Commercial CMOS - Total dose: 100K rad(Si) - Single Event Latchup immune

* High speed, low power consumption

* Schmitt trigger input

UT54ACS164245S General Description

RadHard TM LOGIC SYMBOL O E1 (48) O E2 (25) DIR1 (1) G1 2EN1 (BA) 2EN2 (AB) 1EN1 (BA) 1EN2 (AB) G2 11 12 (24) DIR2 1A1 1A2 1A3 (47) (46) (44) (2) (3) (5) (6) (8) 1B1 1B2 1B3 1B4 (43) 1A4 (41) 1A5 (40) 1A6 (38) 1A7 (37) 1A8 (36) 2A1 21 22 1B5 (9) 1B6 (11) 1B7 (12) 1B8 (13) 2B1 (14) 2B2 (16) 2.

UT54ACS164245S Datasheet (338.08 KB)

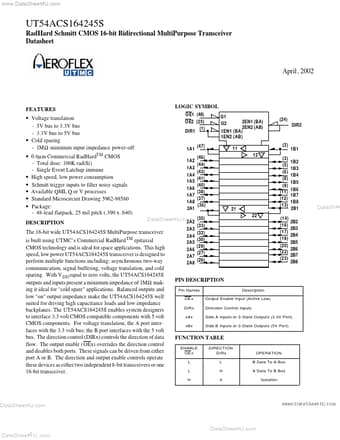

Preview of UT54ACS164245S PDF

Datasheet Details

Part number:

UT54ACS164245S

Manufacturer:

Aeroflex Circuit Technology

File Size:

338.08 KB

Description:

Radhard schmitt cmos 16-bit bidirectional multipurpose transceiver.
