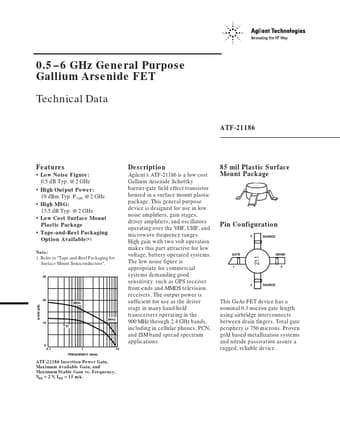

ATF-21186 Datasheet, Fet, Agilent

ATF-21186 Features

• Fet
• Low Noise Figure: 0.5 dB Typ. @ 2 GHz
• High Output Power: 19 dBm Typ. P1dB @ 2 GHz
• High MSG: 13.5 dB Typ. @ 2 GHz
• Low Cost Surface Mount Plastic P

PDF File Details

Part number:

ATF-21186

Manufacturer:

Agilent

File Size:

55.32kb

Download:

📄 Datasheet

Description:

0.5-6 ghz general purpose gallium arsenide fet. Agilent’s ATF-21186 is a low cost Gallium Arsenide Schottky barrier-gate field effect transistor housed in a surface mount plastic pa

TAGS

ATF-21186

Agilent
